Casa /Prodotti/Stampa a getto d'inchiostro tessile/Most Materials Rainbow 6090 A1 Inkjet Printer Phone Case Bottle Systematic UV Printing Machine With 3 Pieces tx800 Printheads

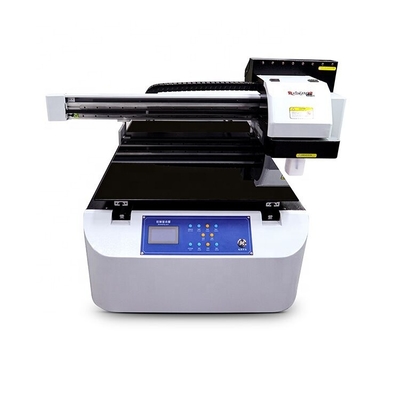

Most Materials Rainbow 6090 A1 Inkjet Printer Phone Case Bottle Systematic UV Printing Machine With 3 Pieces tx800 Printheads

1 Set
MOQ
Most Materials Rainbow 6090 A1 Inkjet Printer Phone Case Bottle Systematic UV Printing Machine With 3 Pieces tx800 Printheads
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Inkjet Printer
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Plate Type: Flatbed Printer
Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 110V/220V
Dimensions(L*W*H): 113*140*72CM
Weight: 135 KG
Warranty: 1 Year
Print Dimension: 600mm*900mm, A1
Ink Type: UV Ink
Key Selling Points: Easy to Operate
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Product name: Nano 9
Print head: TX800
Printing material: Flatbed Material
Ink Color: CMYK+LC+LM+W+V
Language: Multi Language Include Enlish
Resolution: 2880*1440dpi
Max. printing size: 60*90CM Size
Application: most materials
Ink: UV Curing Ink
Keyword: UV Flatbed Printer
Informazioni di base
Termini di pagamento e spedizione
Descrizione di prodotto
All Flatbed Printer Models
Products Show
Equipped Tooling
Product Advantages

Nano 9 6090 uv printer has three print heads which it uses 4 pirces main board.

The machine uses 4 pieces head main board but we install it with three heads——this make printer work more stable because we use higher configuration main board.
Three pieces print heads makes the printing speed very quick, and all colors can be printed.

Fine machining metal frame prolong the lifespan of printer.

Nano 9 uses thick mold opening and customization frame which helps to improve the printing accuracy on any materials.

Transparent waste ink tank + clear display and control button.

The uv printer uses transparent waste ink tank, we can check the tank is full or not so that we can clean it by checking it.Large English/Chinese control button helps easy control of the machine.

Vanish+3D embossed effect.

The uv printer can print with 3D texture effect and vanish glossy effect.

360° rotary bottles printing + mug with handle printing..

Nano 9 equipped with two kinds of rotary devices for any bottles printing, the allowed diameter is from 1cm to 12cm, all tiny cylinder can be printed
Specification
 Specs of Rainbow Nano 9 UV flatbed printer



Name
Rainbow Nano 9 A1+ 6090 digital uv printer
Working Environment
10 ~ 35 ℃ HR40-60%
Machine Type
Automatic Flatbed UV digital printer
Printer Head
Three Printer Heads
Features
· The UV light source can be adjusted
RIP Software
Maintop 6.0 or PhotoPrint DX 12
· Auto height measurement
Operation System
All Microsoft Windows system
. Power auto flash clean
Interface
USB2.0/3.0 Port
·Print on most material directly
Languages
English/Chinese
· Ideal for industrial bulk production with high printing speed
Ink Type
UV LED curing ink
· Finished products is Water proof, UV proof, and Scratch proof
Ink System
CISS Built Inside With Ink Bottle
· Finished product is suitable for outdoor use
Ink Supply
500ml/Bottle
· Max printing Size: 60*90cm
Height Adjustment
Automatic with Sensor.
· With fixed angel
Driving Power
110 V/ 220 V.
· The printing machine can print white color and 3D emboss effect
Power Consumption
1000W
Materials to Print
· Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper,
Media Feeding System
Auto/Manual
·TPU, Leather, Canvas, etc
Ink Consumption
9-15ml/SQM.
UV Curing System
Water Cooling
Print Quality
720×720dpi/720*1080DPI（6/8/12/16pass）
Printing Method
Drop-on-demand Piezo Electric Inkjet
Machine Dimension
106x104x65CM
Printing Direction
Smart Bi-directional Printing Mode
Packing Size
116x114x85CM
Printing Speed
About 5 minutes for 720*720dpi, 600mm*900mm size
Machine Net Weight
135kg
Max. Print Gap
16cm
Gross.Weight
185kg
Power Requirement
50/60HZ 220V(±10%)<5A
Packing Way
Wooden Case
FAQ:
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather,
wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
